# POV-Ray

.hcenter.w40[![](images/povray_example.png)]

## History
* very old project (~1980)
* maintained by **The POV-Team**
* name means "Persistence of Vision Ray Tracer"

## Key points
* ray-tracer
* Turing-complete scene description language
* procedural textures
* radiosity

.block[
* Repository: [https://github.com/POV-Ray/povray](https://github.com/POV-Ray/povray)
* Website: [http://www.povray.org](http://www.povray.org)
* License: `AGPLv3`
]

---

# Ray-tracing

## What is ray-tracing ?
:arrow_right: a method to generate nearly photo-realistic images by modeling light rays.

## Key points
* very good reproduction of shadows, reflections, refractions, scattering, etc...
* **very high computational cost**
* can easily use **parallelization**
* :arrow_right: **real-time ray-tracing** is coming !

## Main types of ray-tracing
* eye-based (historical)
* light-based
* bidirectional path tracing
* photon mapping (for caustics, global illumination...)
* etc...

---

# POV-Ray - General

## Workflow
1. describe the scene in a file
2. let POV-Ray interpret the file and generate an image

## Object types
* POV-Ray default objects
* user-defined objects

## Object properties
* how it deflects / reflects light
* texture / material / color
* etc...

---

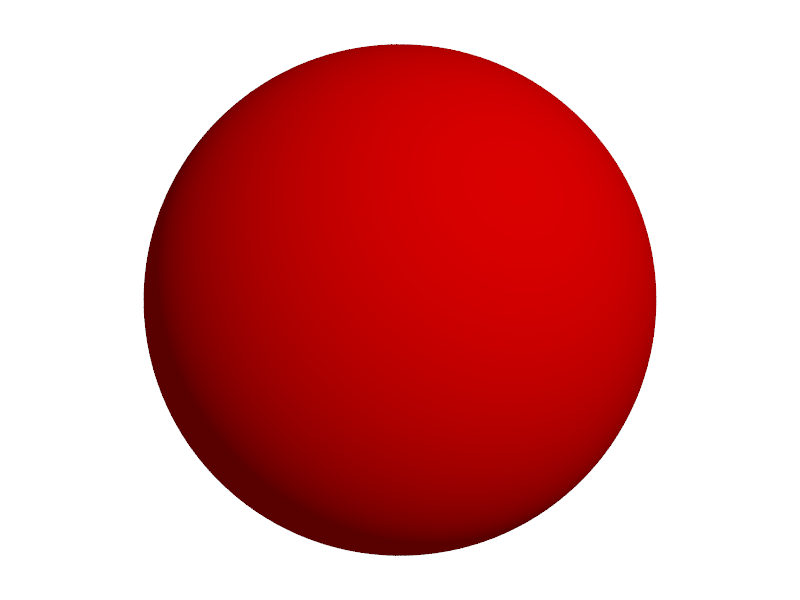

# POV-Ray - Example

.row[
.column.w48[
## .hcenter[`[example_00.pov]`]

```pov
#include "colors.inc"

background { color White }

camera {
  location <0, 2, -3>
  look_at <0, 1, 2>
}

sphere {
  <0, 1, 2>, 2
  texture {
    pigment { color Red }
  }
}

light_source { <2, 4, -3> color White}

```
]
.column.w48.middle[
## .hcenter[Shell session]

```shell
$ povray +A0.0001 -W800 -H600 +P +Q11 example_00.pov
```
]
]

.hcenter.w40.shadow[![](images/example_00.png)]

---

# POV-Ray - Source code

## Syntax
* **very close from `C`**
* case-sensitive
* whitespaces are ignored
* **order of objects** is ignored (but not order of properties)
* comments use `/* ... */` and `//` like `C`
* include other files with `#include "..."`

## Vectors `<a0, ... ,an>`
* can refer to a point in 2D-space `<x,y>`
* can refer to a point in 3D-space `<x,y,z>`
* can refer to a color `rgb <r,g,b>` with `\(0\le \{r,g,b\} \le 1\)`
* can refer to a transparent color `rgbf <r,g,b,f>` with `\(0\le \{r,g,b,f\} \le 1\)`
* can refer to a normal vector `<nx,ny,nz>`

---

# POV-Ray - Initial scene

.row[
.column.w48.middle[
```pov
camera
{
  location <1,4,-5>
  look_at <0,1,0>
  angle 45
}
```
]
.column.w48[
## Camera
:arrow_right: defines the "eye" of the observer
]
]

.row[
.column.w48.middle[
```pov
light_source
{
  <-2,7,-3>
  color rgb <1,1,1>
}
```
]
.column.w48[
## Light
:arrow_right: emits some light
]
]

.row[
.column.w48.middle[
```pov
background
{
  rgb <1,1,1>
  // rgbf <1,1,1,0>
}
```
]
.column.w48[
## Background
:arrow_right: defines the default color of rays
]
]

---

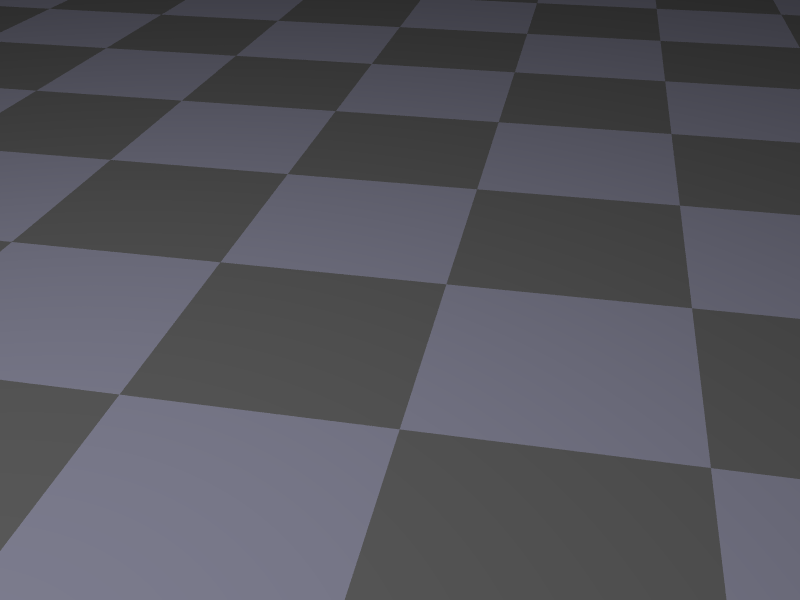

# POV-Ray - Plane

.row[
.column.w40.middle[
```pov
object
{
  plane
  {
    <0,1,0> // normal axis
    0 // where does the plane cut the axis
    pigment
    {
      checker // checker pattern
      color rgb <0.7,0.7,0.8> // light gray
      color rgb <0.5,0.5,0.5> // dark gray
      scale 2
    }
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/plane.png)]
]
]


---

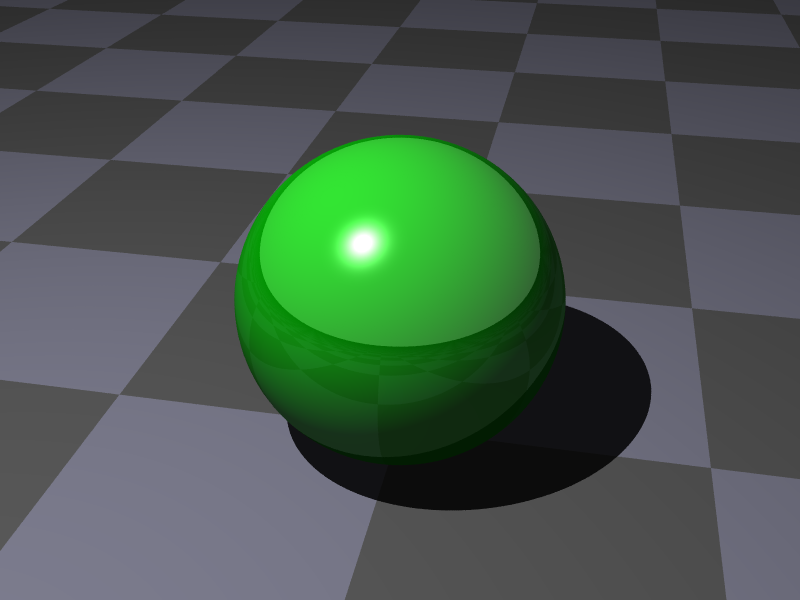

# POV-Ray - Sphere

.row[
.column.w40.middle[
```pov
object
{
  sphere
  {
    <0,1,0>, 1 // center, radius
  }
  pigment
  {
    color rgb <0,1,0> // pure green
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/sphere.png)]
]
]

---

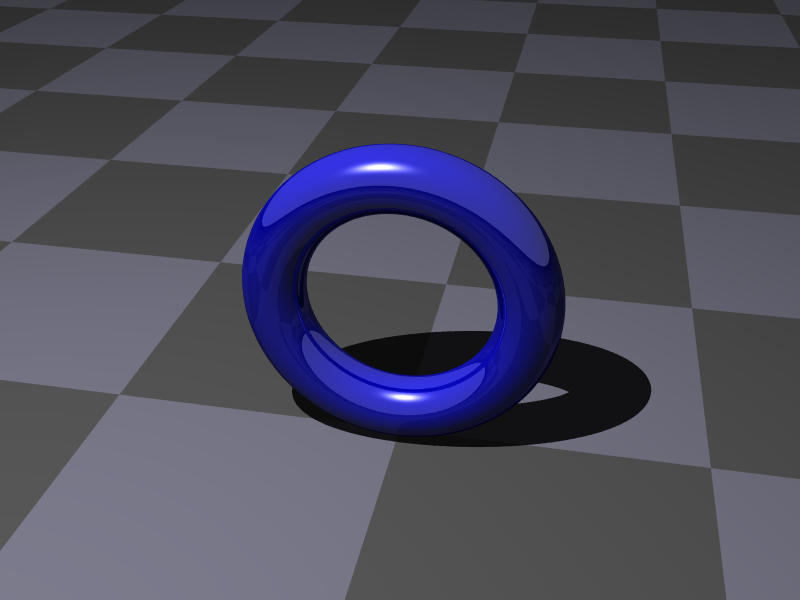

# POV-Ray - Torus

.row[
.column.w40.middle[
```pov
object
{
  torus
  {
    0.8, 0.2 // big radius, small radius
  }
  pigment
  {
    color rgb <0,0,1> // pure blue
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
  rotate <90,0,0>   // rotation
  translate <0,1,0> // translation
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/torus.png)]
]
]

---

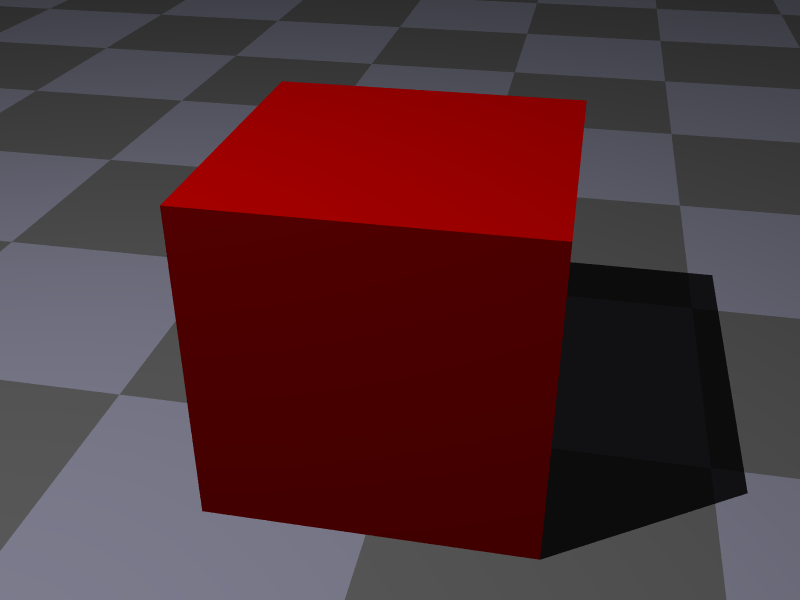

# POV-Ray - Box

.row[
.column.w40.middle[
```pov
object
{
  box
  {
    <-1,0,-1>, <1,2,1> // corners
  }
  pigment
  {
    color rgb <1,0,0> // pure red
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/box.png)]
]
]

---

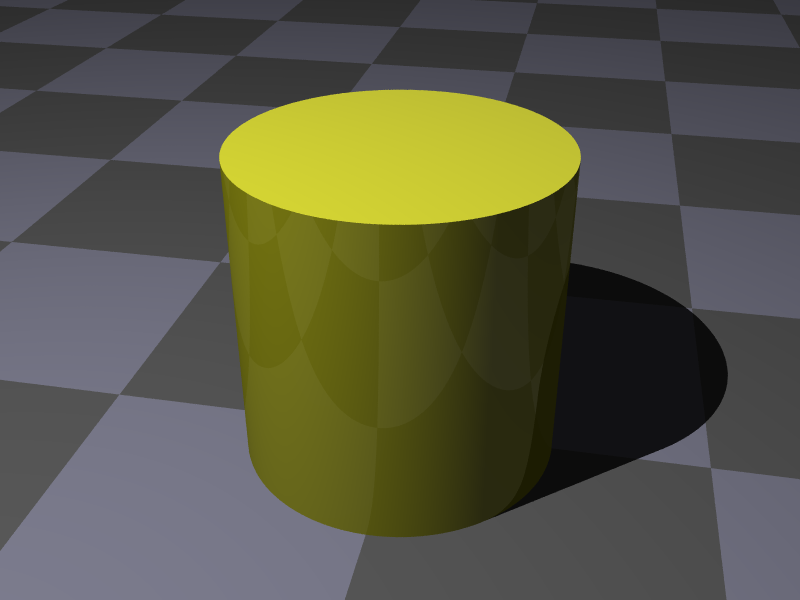

# POV-Ray - Cylinder

.row[
.column.w40.middle[
```pov
object
{
  cylinder
  {
    <0,0,0> // 1st center
    <0,2,0> // 2nd center
    1       // radius
  }
  pigment
  {
    color rgb <1,1,0> // pure yellow
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/cylinder.png)]
]
]

---

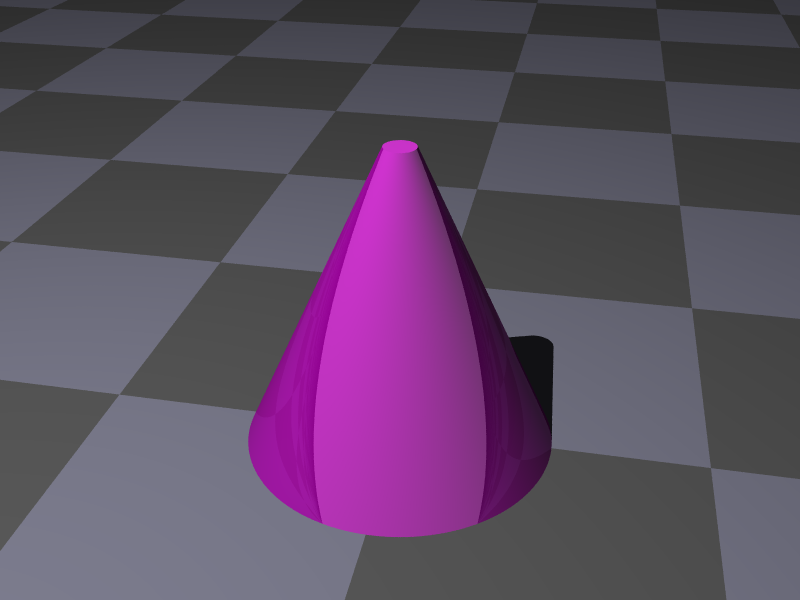

# POV-Ray - Cone

.row[
.column.w40.middle[
```pov
object
{
  cone
  {
    <0,0,0> // 1st center
    1       // 1st radius
    <0,2,0> // 2nd center
    0.1     // 2nd radius
  }
  pigment
  {
    color rgb <1,0,1> // pure magenta
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/cone.png)]
]
]

---

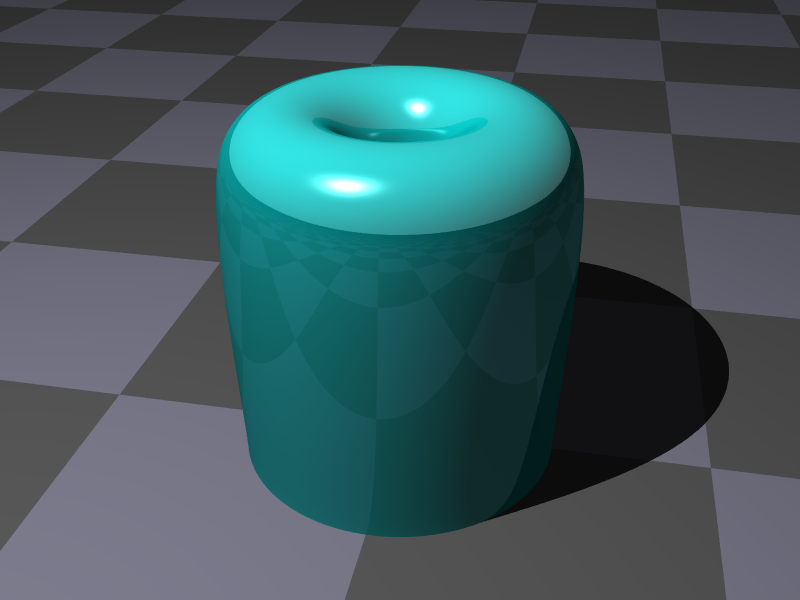

# POV-Ray - Lathe

.row[
.column.w40.middle[
```pov
object
{
  lathe
  {
    cubic_spline // type of spline
    6  // number of points
    <1.0,0>  // -+
    <1.0,0>  //  |
    <1.0,2>  //  | spline
    <0.3,2>  //  |
    <0.3,0>  //  |
    <0.3,0>  // -+
  }
  pigment
  {
    color rgb <0,1,1> // pure cyan
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/lathe.png)]
]
]

---

# POV-Ray - Prism

.row[
.column.w40.middle[
```pov
object
{
  prism
  {
    linear_spline // type of spline
    0, 2  // origin, height
    10  // number of points
    <-1,-1>      // -+
    <-1,1>       //  |
    <1,1>        //  | outer spline
    <1,-1>       //  |
    <-1,-1>      // -+
    <-0.8,-0.8>  // -+
    <-0.8,0.8>   //  |
    <0.8,0.8>    //  | inner spline
    <0.8,-0.8>   //  |
    <-0.8,-0.8>  // -+
  }
  pigment
  {
    color rgb <1,0,0> // pure red
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/prism.png)]
]
]

---

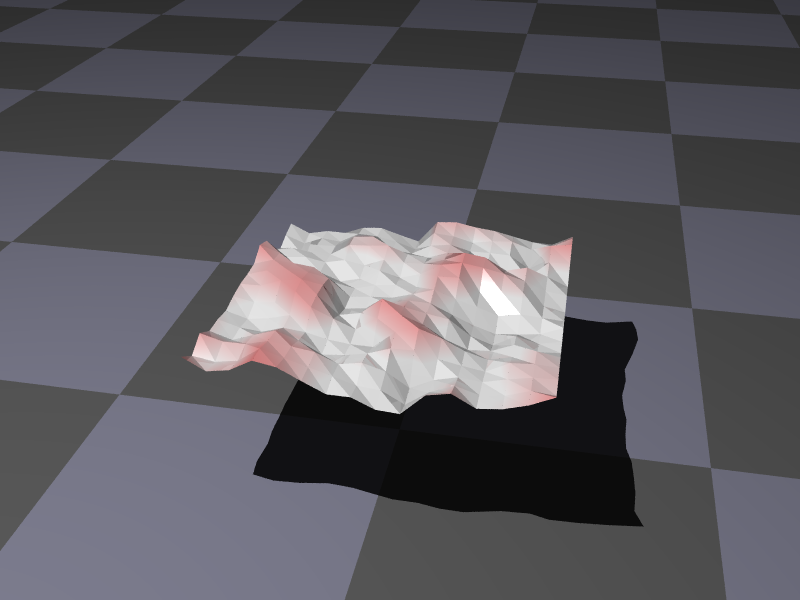

# POV-Ray - Height field

.row[
.column.w40.middle[
```pov
#declare fn_Hills = function
{
  pigment
  {
    bumps
    warp
    { turbulence 0.5 }
    scale 0.2
  }
}

object
{
  height_field
  {
    function 16, 16
    { fn_Hills (x, y, z).red }

  }
  pigment
  {
    gradient y
    color_map
    {
      [0.0 color rgb <1,1,1>]
      [0.5 color rgb <1,1,1>]
      [1.0 color rgb <1,0,0>]
    }
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
  translate <-0.5, -0.5, -0.5>
  scale <2, 0.5, 2>
  translate <0,1,0>
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/height_field_16.png)]
]
]

---

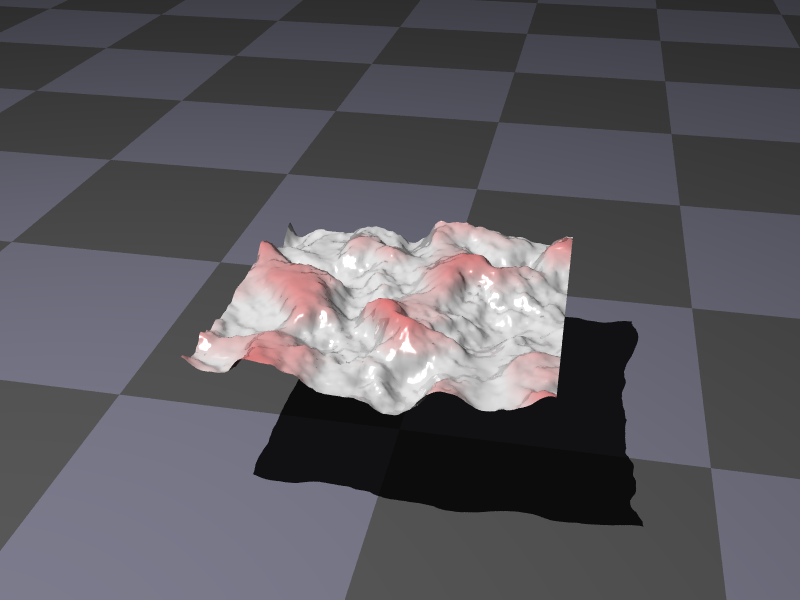

# POV-Ray - Height field

.row[
.column.w40.middle[
```pov
#declare fn_Hills = function
{
  pigment
  {
    bumps
    warp
    { turbulence 0.5 }
    scale 0.2
  }
}

object
{
  height_field
  {
*   function 100, 100
    { fn_Hills (x, y, z).red }
*   smooth
  }
  pigment
  {
    gradient y
    color_map
    {
      [0.0 color rgb <1,1,1>]
      [0.5 color rgb <1,1,1>]
      [1.0 color rgb <1,0,0>]
    }
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
  translate <-0.5, -0.5, -0.5>
  scale <2, 0.5, 2>
  translate <0,1,0>
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/height_field.png)]
]
]

---

# POV-Ray - Blob

.row[
.column.w40.middle[
```pov
object
{
  blob
  {
    threshold 0.6 // isovalue
    sphere
    {
      <.75, 0, 0>  // center
      1            // radius
      1            // strength
    }
    sphere { <-.375, .64952, 0>, 1, 1 }
    sphere { <-.375, -.64952, 0>, 1, 1 }
    rotate <90,0,0>
    translate <0,1,0>
    scale 1.2
  }
  pigment
  {
    color rgb <0,1,0> // pure green
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/blob.png)]
]
]

---

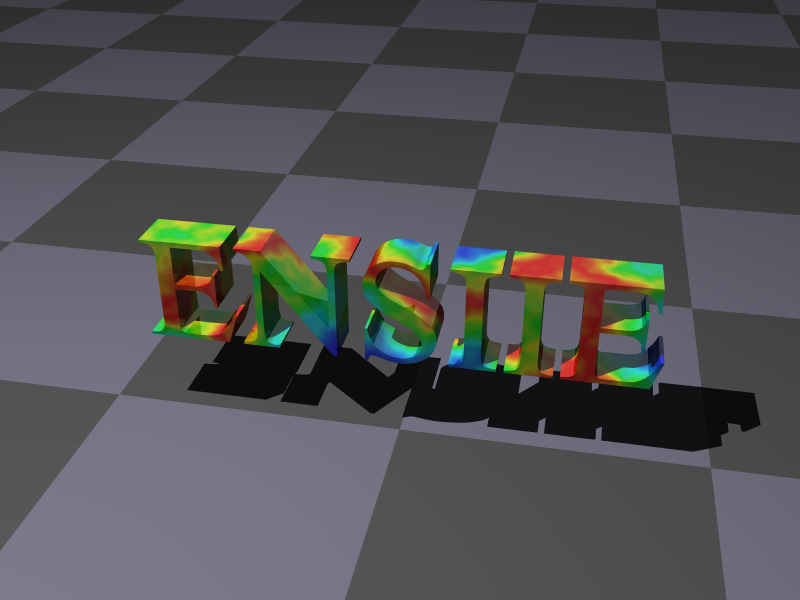

# POV-Ray - Text

.row[
.column.w40.middle[
```pov
object
{
  text
  {
    ttf "timrom.ttf" "ENSIIE" // font
    0.3  // thickness
    0    // offset
    translate <-1.6,-0.35,-0.15>
    scale 1.0
    translate <0,1,0>
  }
  pigment
  {
    agate // pattern type
    color_map {
      [0.00 color rgb <1,0,0>]
      [0.25 color rgb <1,1,0>]
      [0.50 color rgb <0,1,0>]
      [0.75 color rgb <0,1,1>]
      [1.00 color rgb <0,0,1>]
    }
    scale 2.0
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
}```
]
.column.w55.middle[
.hcenter.shadow[![](images/text.png)]
]
]

---

# POV-Ray - Transparency

.row[
.column.w40.middle[
```pov
object
{
  text
  {
    ttf "timrom.ttf" "ENSIIE" // font
    0.3  // thickness
    0    // offset
    translate <-1.6,-0.35,-0.15>
    scale 1.0
    translate <0,1,0>
  }
  pigment
  {
*   rgbf <1,0,0,0.9>
  }
  finish
  {
    phong 1.0
    reflection 0.2
*   ambient 0.1
*   diffuse 0.5
*   specular 0.5
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/transparent.png)]
]
]

---

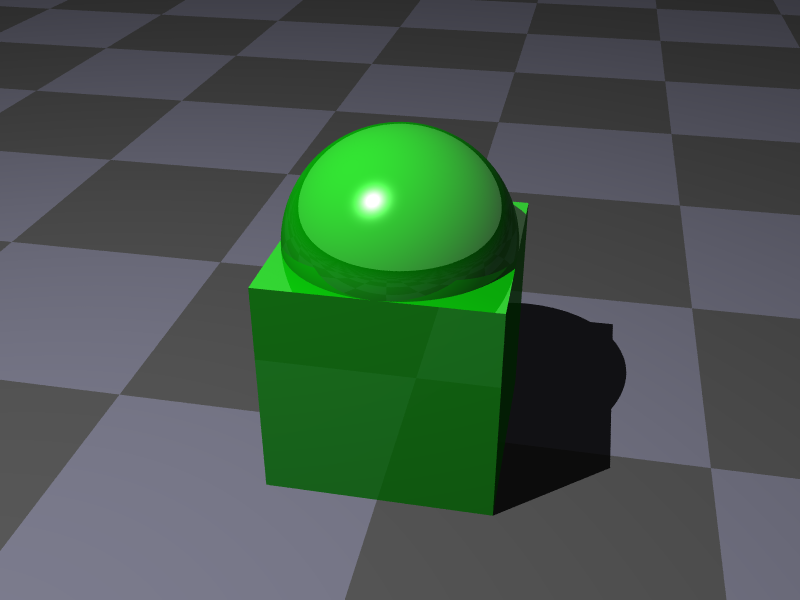

# POV-Ray - Union of objects

.row[
.column.w40.middle[
```pov
object
{
  union
  {
    box
    {
      <-1,0,-1>, <1,2,1>
    }
    sphere
    {
      <0,2,0>, 1.0
    }
    scale 0.7
  }
  pigment
  {
    color rgb <0,1,0> // pure green
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/union.png)]
]
]

---

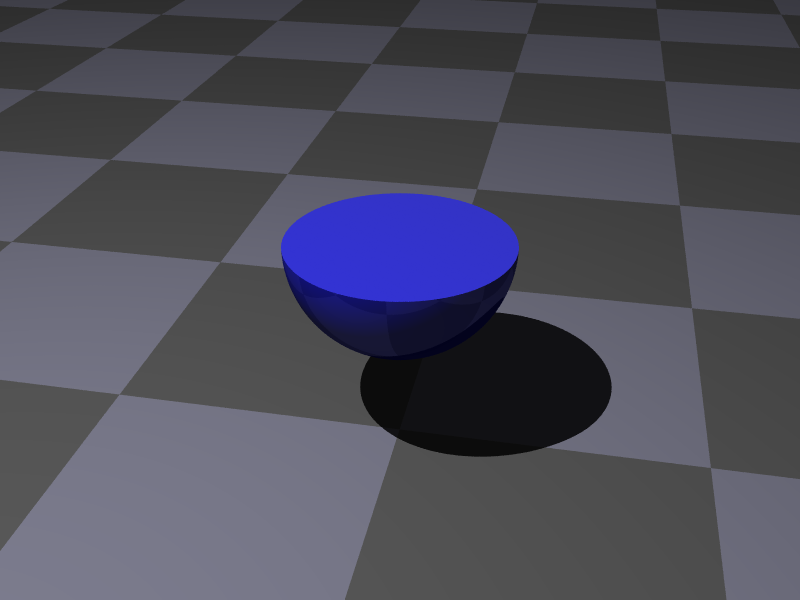

# POV-Ray - Intersection of objects

.row[
.column.w40.middle[
```pov
object
{
  intersection
  {
    box
    {
      <-1,0,-1>, <1,2,1>
    }
    sphere
    {
      <0,2,0>, 1.0
    }
    scale 0.7
  }
  pigment
  {
    color rgb <0,0,1> // pure blue
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/intersection.png)]
]
]

---

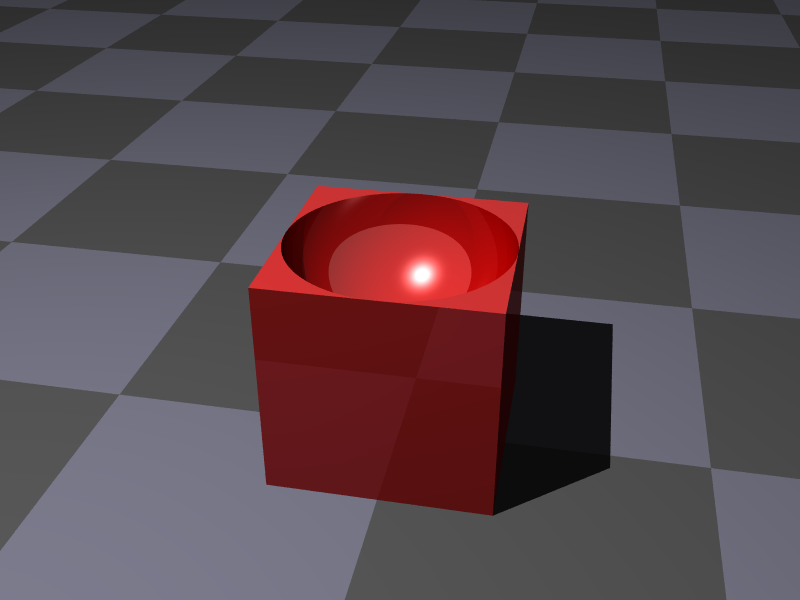

# POV-Ray - Difference of objects

.row[
.column.w40.middle[
```pov
object
{
  difference
  {
    box
    {
      <-1,0,-1>, <1,2,1>
    }
    sphere
    {
      <0,2,0>, 1.0
    }
    scale 0.7
  }
  pigment
  {
    color rgb <1,0,0> // pure red
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/difference.png)]
]
]

---

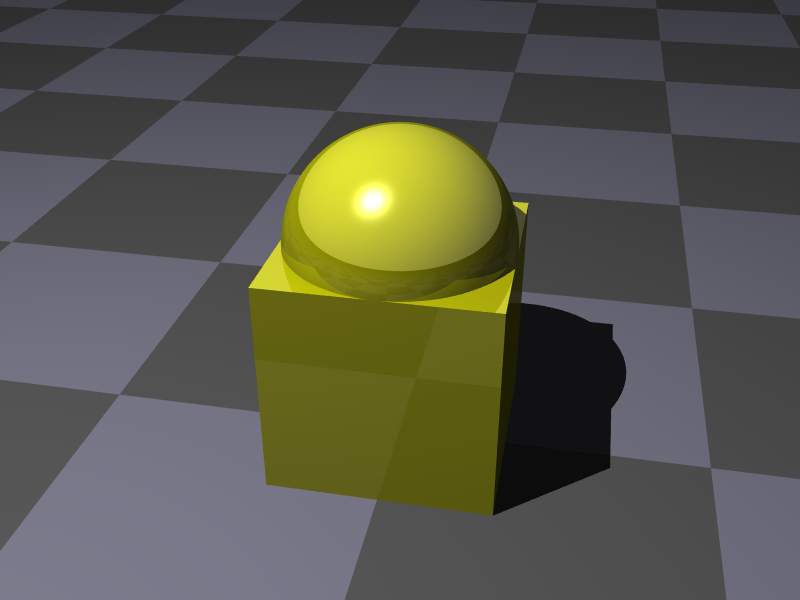

# POV-Ray - Merge objects

.row[
.column.w40.middle[
```pov
object
{
  merge
  {
    box
    {
      <-1,0,-1>, <1,2,1>
    }
    sphere
    {
      <0,2,0>, 1.0
    }
    scale 0.7
  }
  pigment
  {
    color rgb <1,1,0> // pure yellow
  }
  finish
  {
    phong 1.0
    reflection 0.2
  }
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/merge.png)]
]
]

---

# POV-Ray - Union / Merge comparison

.row[
.column.w48.middle[

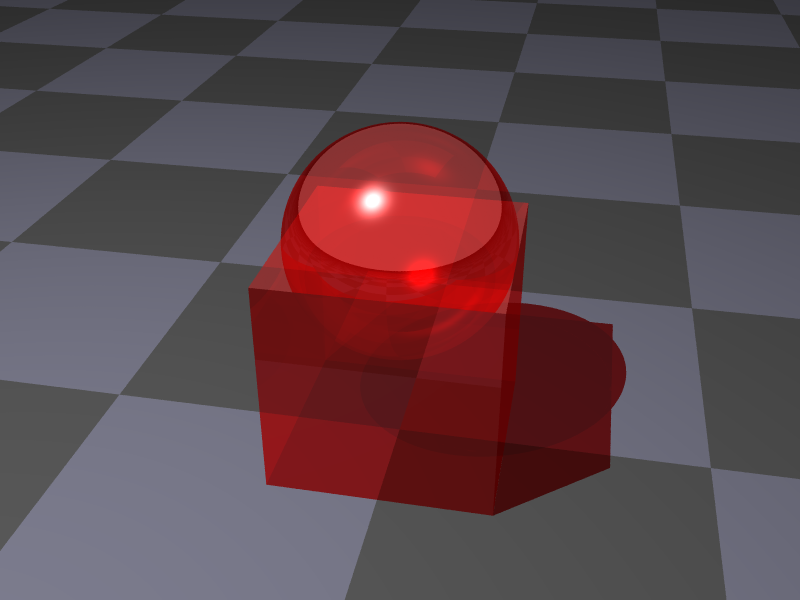

## .hcenter[Union]
.hcenter.shadow[![](images/transparent_union.png)]
]
.column.w48.middle[

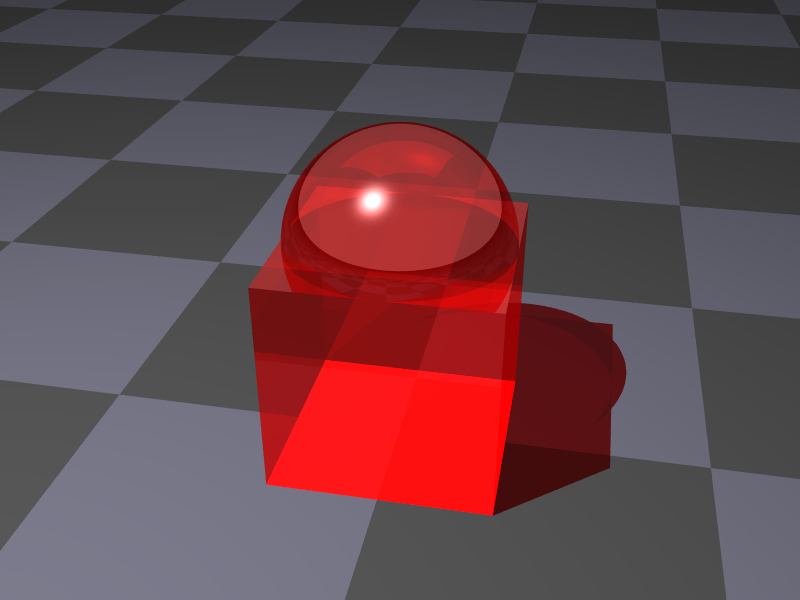

## .hcenter[Merge]
.hcenter.shadow[![](images/transparent_merge.png)]
]
]

---

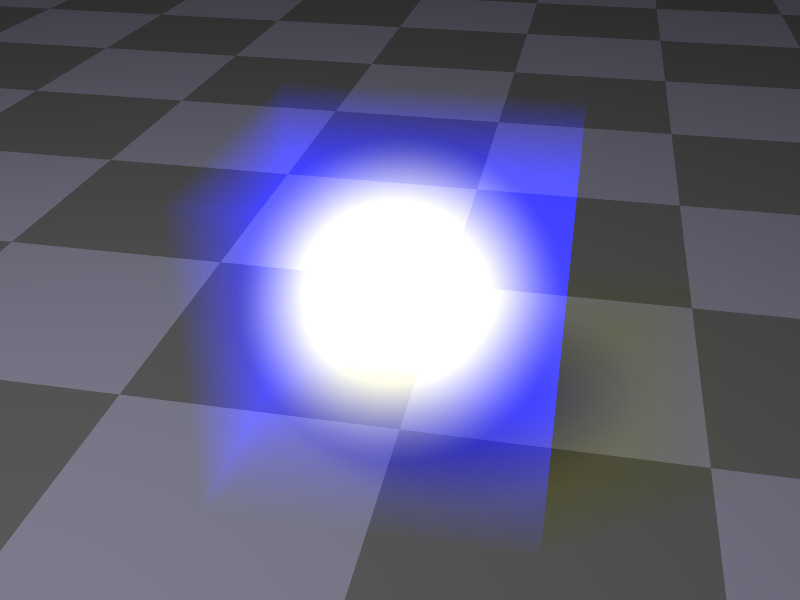

# POV-Ray - Density

.row[
.column.w40.middle[
```pov
object
{
  box
  {
    <-1,-1,-1>, <1,1,1>
*   hollow
  }
  pigment
  {
    color rgbf <1,1,1,1>
  }
  interior
  {
    media
    {
      emission 0.75
      scattering {1, 0.5}
*     density
      {
        spherical
        color_map
        {
          [0.0 rgb <0,0,0.5>]
          [0.5 rgb <0.8, 0.8, 0.4>]
          [1.0 rgb <1,1,1>]
        }
      }
    }
  }
  translate <0,1,0>
* translate <0,0.001,0>
}
```
]
.column.w55.middle[
.hcenter.shadow[![](images/density_example.png)]
]
]

---

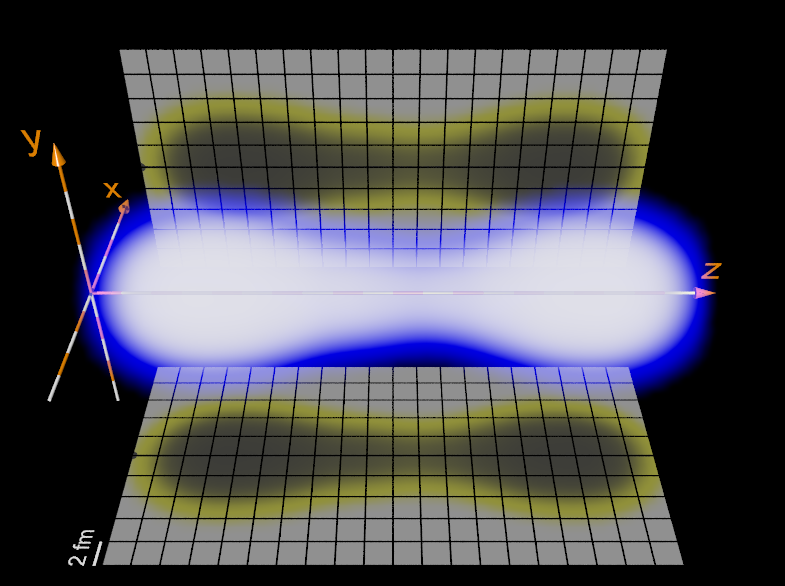

# POV-Ray - Nuclear Local Density

.hcenter.shadow.w80[![](images/density.png)]

---

# POV-Ray - `visu.pov`

:arrow_right: file available [here](../examples/povray/visu.pov). This scene uses a density file called `example.df3`.

```pov
[...]
box
{
 <0,0,0><1,1,1>
 hollow
 pigment
 { rgbf 1 }
 interior
 {
  media
  {
   emission 0.7
   absorption 1.0
   intervals 10
   density
   {
*   density_file df3 "example.df3"

    scale<NBX/(NBX-1),NBY/(NBY-1),NBZ/(NBZ-1)>
    interpolate INTERPOLATE

    color_map
    {
     [0.0   rgb <0.0,0.0,0.0>]
     [0.1   rgb <0.0,0.0,2.0>]
     [1.0   rgb <1.0,1.0,1.0>]
    }
   }
  }
 }
 scale <10,10,20>
 translate <-5,-5,-10>
 rotate y*90
}
[...]
```

---

# POV-Ray - `df3` format

## Reference
[POV-Ray df3 format](http://povray.org/documentation/3.7.0/r3_4.html#r3_4_7_1_8_1).

.block[
## Header
The df3 format consists of a 6 byte header of three 16-bit integers with high order byte first.
These three values give the x,y,z size of the data in pixels (or more appropriately called voxels).

## Data
The header is followed by x*y*z unsigned integer bytes of data with a resolution of 8, 16 or 32 bit.
The data are written with high order byte first (big-endian). The resolution of the data is determined
by the size of the df3-file. That is, if the file is twice (minus header, of course) as long as an 8 bit
file then it is assumed to contain 16 bit ints and if it is four times as long 32 bit ints.
]

---

# POV-Ray - `df3` writer

```C++
std::string cubeToDf3(const arma::cube &m)
{
  std::stringstream ss(std::stringstream::out | std::stringstream::binary);
  int nx = m.n_rows;
  int ny = m.n_cols;
  int nz = m.n_slices;
  ss.put(nx >> 8); ss.put(nx & 0xff);
  ss.put(ny >> 8); ss.put(ny & 0xff);
  ss.put(nz >> 8); ss.put(nz & 0xff);
  double theMin = 0.0;
  double theMax = m.max();

  for (uint k = 0; k < m.n_slices; k++)
  {
    for (uint j = 0; j < m.n_cols; j++)
    {
      for (uint i = 0; i < m.n_rows; i++)
      {
        uint v = 255 * (fabs(m(i, j, k)) - theMin) / (theMax - theMin);
        ss.put(v);
      }
    }
  }

  return ss.str();
}
```
where `m` is an `arma::cube` representing the density to be plotted.
**Mandatory dimensions for `m`**:

.hcenter[
| Axis |    x   |    y   |    z   |
| :--: | :----: | :----: | :----: |
| min  | -10 fm | -10 fm | -20 fm |
| max  |  10 fm |  10 fm |  20 fm |
| nbp  |  32    |  32    |  64    |
]

---

# POV-Ray - Conclusions

.hcenter.shadow.w60[![](images/landscape.png)]

:+: rather powerful ray-tracer
:+:  very easy to generate scenes
:+: very easy to automate mass-production of renderings
:+: good introduction to ray-tracers
:warning: not a modeler
:warning: may seem old-school at some points

:arrow_right: **My advice:** use it as your first ray-tracer, then switch to **Blender**, especially if you need a modeler.
