# `VTK`

.hcenter.w20[![](images/vtk.png)]

## History
* started in **1993** as companion software for the book *"The Visualization Toolkit: An Object-Oriented Approach to 3D Graphics"* by Will Schroeder, Ken Martin and Bill Lorensen.
* creation of Kitware Inc. in **1998**
* main private contributors: LANL, LLNL, SNL, ARL, NCSA...
* **most used visualization system in the world** (science, industry, medical, big data...)

## Characteristics
* **4646 `C++` classes** (03/17/2021)
* built on top of `OpenGL`
* **multiprocess** and/or **multithread** and/or **`CUDA`** and/or **`OpenCL`**...

.block[
* Repository: [https://gitlab.kitware.com/vtk/vtk](https://gitlab.kitware.com/vtk/vtk)
* Website: [https://www.vtk.org](https://www.vtk.org)
* License: `BSD`
]

---

# `VTK` - Information sources

.vspace[]

.vspace[]

.vspace[]

.noflex[
.rightf.w30[![](images/vtk_book.png)]

## Manuals
* reference manual: [https://www.vtk.org/documentation/](https://www.vtk.org/documentation/)
* local manual pages: package `vtk7-doc` in `ubuntu`

## Examples
* [https://lorensen.github.io/VTKExamples/site/](https://lorensen.github.io/VTKExamples/site/)

## Textbook
* `VTK` Textbook (available in [**free pdf**](https://www.kitware.com/products/books/VTKTextbook.pdf))

## Tutorials
:arrow_right: some of the following slides have been inspired by
* [`VTK` tutorial by Dave Semeraro](http://www.ncsa.illinois.edu/People/semeraro/PPT/VTK_TUTORIAL/v3_document.htm)
]

---

# `VTK` - Library

## Languages
* `VTK` is a library of **object-oriented** classes
* pure `C++` core
* uses a lot of OO-programming techniques
* bindings available for `Tcl`, **`Python`**, and `Java`

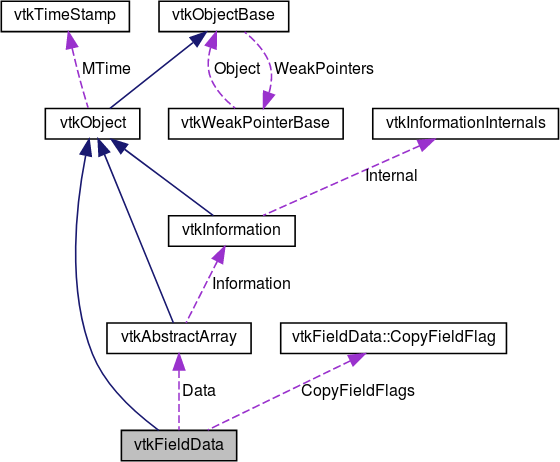

## Collaboration diagram for `vtkFieldData`

.vspace[]

.hcenter.w40[![](images/vtk_graph.png)]

---

# `VTK` - Overview

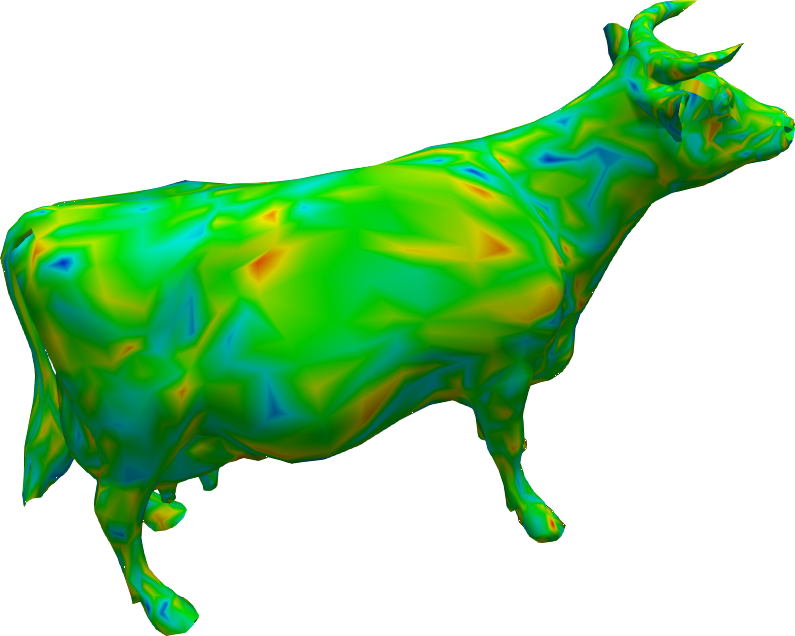

## Workflow

.hcenter.w60.mermaid.shadow[
    graph LR
    A(user data) --> B
    B(geometry) --> C(image)
]

.row.hcenter.w60[
.column.w20[
![](images/cow0.png)]
.column.w10[ ]
.column.w30[
![](images/cow1.png)]
.column.w10[ ]
.column.w30[
![](images/cow2.png)]
]

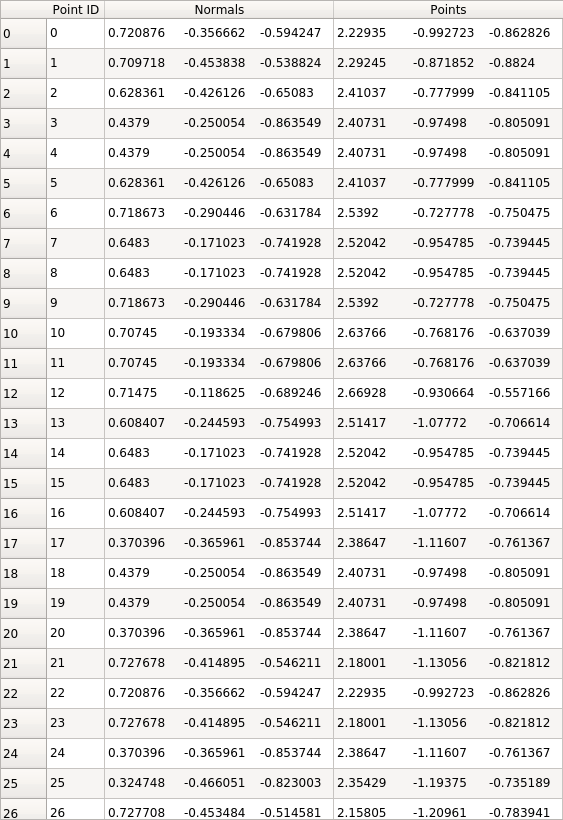

## Usual **user data**
* field data on a regular grid
* field data on an irregular grid
* polygonal data
* ...

---

# `VTK` - Models


.hcenter.w60.mermaid.shadow[
    graph LR
    A(user data) --> B
    B(geometry) --> C(image)
]

## `VTK` main parts

:arrow_right: **Visualization Model**
* Visualization **Pipeline**
* Data to Geometry

:arrow_right: **Graphics Model**
* Abstract layer above OpenGL
* Geometry to Image

:arrow_right: **Imaging Model**
* Image processing

---

# `VTK` - Models

## Visualization Model pipeline

.hcenter.w75.mermaid.shadow[
    graph LR
    A(source) --> B
    B(filter) --> Y
    C(source) --> D
    D(filter) --> E
    E(filter) --> Y
    Y(filter) --> Z(graphics model)
    style A fill:#2A2
    style C fill:#2A2
    style Z fill:#A22
]

:arrow_right: `Source` objects have 0 input, 1+ output(s)
:arrow_right: `Filter` objects have 1+ input(s), 1+ output(s)
:arrow_right: `Mapper` objects have 1+ input(s), 0 output
:arrow_right: The pipeline implements an **implicit execution** mechanism

 .vspace[]

## Main Visualization Model Classes
* `vtkDataObject`: contains generic data,
* `vtkDataSet`: contains **geometry + topology + attribute data**,
* `vtkProcessObject`: transforms a `vtkDataObject` into another `vtkDataObject`.

---

# `VTK` - Models

## Main Graphics Model Classes
* `vtkRenderWindow`: a usual window, may contain several renderers,
* `vtkRenderer`: an OpenGL context, belongs to a window,
* `vtkActor`: an object rendered in the scene,
* `vtkMapper`: constructs an object from data,
* `vtkCamera`: a camera in the scene,
* `vtkLight`: a light source in the scene,
* `vtkProperty`: appearance of an actor (color, transparency, light properties...),
* `vtkRenderWindowInteractor`: how the user interacts with the scene.

:arrow_right: Some objects may be automatically created by others:
:bulb: For example, a `vtkRenderer` creates an instance of a `vtkCamera`.

---

# `VTK` - Hello world !

## .hcenter[\[vtk/vtk_hello_world_cpp/vtk_hello_world.cxx\]]
```C++
#include <vtkCylinderSource.h>
#include <vtkPolyDataMapper.h>
#include <vtkActor.h>
#include <vtkRenderer.h>
#include <vtkRenderWindow.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkProperty.h>
#include <vtkSmartPointer.h>

int main(int, char *[])
{
  // source
  vtkSmartPointer<vtkCylinderSource> cylinder = vtkSmartPointer<vtkCylinderSource>::New();
  // mapper
  vtkSmartPointer<vtkPolyDataMapper> cylinderMapper = vtkSmartPointer<vtkPolyDataMapper>::New();
  cylinderMapper->SetInputConnection(cylinder->GetOutputPort());
  // actor
  vtkSmartPointer<vtkActor> cylinderActor = vtkSmartPointer<vtkActor>::New();
  cylinderActor->SetMapper(cylinderMapper);
  cylinderActor->RotateX(30.0);
  // renderer
  vtkSmartPointer<vtkRenderer> renderer = vtkSmartPointer<vtkRenderer>::New();
  // window
  vtkSmartPointer<vtkRenderWindow> renderWindow = vtkSmartPointer<vtkRenderWindow>::New();
  renderWindow->AddRenderer(renderer);
  // interactor
  vtkSmartPointer<vtkRenderWindowInteractor> renderWindowInteractor = vtkSmartPointer<vtkRenderWindowInteractor>::New();
  renderWindowInteractor->SetRenderWindow(renderWindow);
  // add actor to renderer
  renderer->AddActor(cylinderActor);
  // set window size and render
  renderWindow->SetSize(200, 200);
  // start interactor loop
  renderWindowInteractor->Start();
  return EXIT_SUCCESS;
}
```

---

# `VTK` - Hello world !

:arrow_right: The prefered way to compile `VTK` code in `C++` is to use `CMake` ([website](https://cmake.org/)).

## .hcenter[\[vtk/vtk_hello_world_cpp/CMakeLists.txt\]]
```CMake
cmake_minimum_required(VERSION 3.3 FATAL_ERROR)

project(vtk_hello_world)

find_package(VTK COMPONENTS
  vtkCommonColor
  vtkCommonCore
  vtkFiltersSources
  vtkInteractionStyle
  vtkRenderingContextOpenGL2
  vtkRenderingCore
  vtkRenderingFreeType
  vtkRenderingGL2PSOpenGL2
  vtkRenderingOpenGL2 QUIET)
if (NOT VTK_FOUND)
  message("Skipping vtk_hello_world: ${VTK_NOT_FOUND_MESSAGE}")
  return ()
endif()
message (STATUS "VTK_VERSION: ${VTK_VERSION}")
if (VTK_VERSION VERSION_LESS "8.90.0")
  # old system
  include(${VTK_USE_FILE})
  add_executable(vtk_hello_world MACOSX_BUNDLE vtk_hello_world.cxx )
  target_link_libraries(vtk_hello_world PRIVATE ${VTK_LIBRARIES})
else ()
  # include all components
  add_executable(vtk_hello_world MACOSX_BUNDLE vtk_hello_world.cxx )
  target_link_libraries(vtk_hello_world PRIVATE ${VTK_LIBRARIES})
  # vtk_module_autoinit is needed
  vtk_module_autoinit(
    TARGETS vtk_hello_world
    MODULES ${VTK_LIBRARIES}
    )
endif ()
```

---

# `VTK` - Hello world !

## .hcenter[Shell session]
.hcenter[
<asciinema-player src="scripts/vtk_cpp.cast"></asciinema-player>
]

---

# `VTK` - Hello world !

## .hcenter[\[vtk/vtk_hello_world.py\]]
```Python
#!/usr/bin/env python3

import vtk

# source
cylinder = vtk.vtkCylinderSource()

# mapper
cylinderMapper = vtk.vtkPolyDataMapper()
cylinderMapper.SetInputConnection(cylinder.GetOutputPort())

# actor
cylinderActor = vtk.vtkActor()
cylinderActor.SetMapper(cylinderMapper)
cylinderActor.RotateX(30.0)

# renderer
ren = vtk.vtkRenderer()

# window
renWin = vtk.vtkRenderWindow()
renWin.AddRenderer(ren)

# interactor
iren = vtk.vtkRenderWindowInteractor()
iren.SetRenderWindow(renWin)
iren.Initialize()

# add actor to renderer
ren.AddActor(cylinderActor)

# set window size and render
renWin.SetSize(300, 300)
renWin.Render()

# start interactor loop
iren.Start()
```

---

# `VTK` - Cheatsheet

## Default interactor events

:arrow_right: Keypresses
* `j` / `t`: toggle between **joystick** and **trackball** modes.
* `c` / `a`: toggle between **camera** and **actor** modes.
* `3`: toggle **stereo** mode.
* `e`: **exit** the application.
* `f`: **fly** to the selected point.
* `p`: select (**pick**) using the current `vtkCellPicker` instance.
* `r`: **reset** the camera.
* `s` / `w`: toggle between **surface** and **wireframe** modes.
* `u`: launch a **user-defined** function.

:arrow_right: Mouse buttons
* `left`: **rotate**.
* `middle`: **translate** (actor) or **pan** (camera).
* `right`: **scale** (actor) or **zoom** (camera).

---

# `VTK` - External data / Datasets

## `vtkDataObject` conversion and I/O
:arrow_right: `Source` objects produce `vtkDataObject` instances of given types
:arrow_right: `Filter` objects can **change the type** of a `vtkDataObject`
:arrow_right: A `Source` object which reads external data is called a **`Reader`**
:arrow_right: A `Mapper` object which exports data is called a **`Writer`**

:bulb: Some `Source` objects do not need external data

.vspace[]

## `vtkDataSet` objects
:arrow_right: Different object types depending on the dataset properties:
* type of the data
* (un)structured nature of the data
* (un)regularity of the mesh
* ...

---

# `VTK` - `vtkDataSet` classes

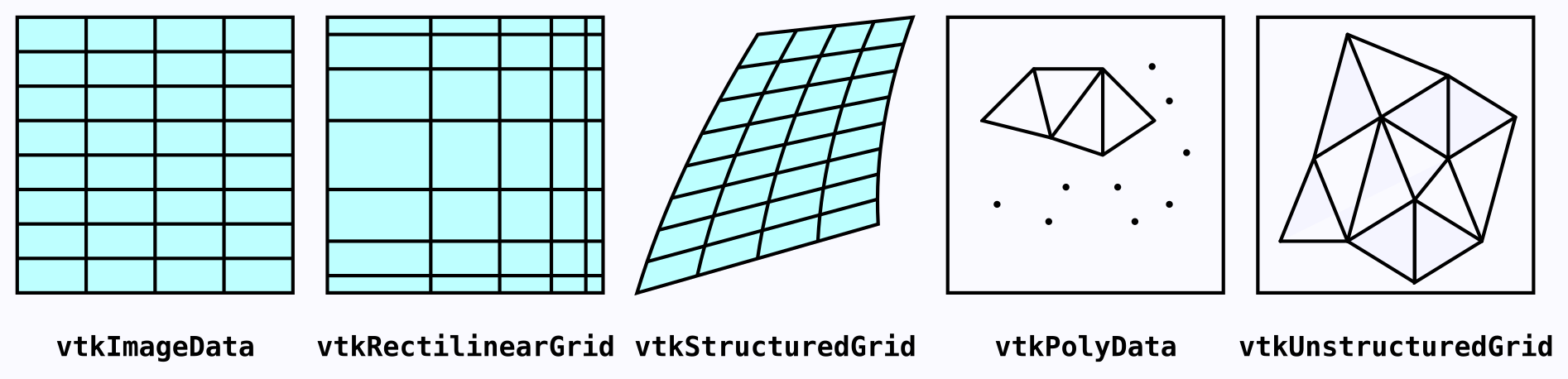

## `VTK` main datasets

.hcenter.w90[![](images/datasets.png)]

.hcenter[
| Class                 | Topology | Geometry       | Defined by             |
| :-------------------- | :------- | :------------- | :--------------------- |
| `vtkImageData`        | regular  | regular        | dimensions             |
| `vtkRectilinearGrid`  | regular  | semi-regular   | x- and y- values       |
| `vtkStructuredGrid`   | regular  | unregular      | points + neighbors     |
| `vtkPolyData`         | cells    | polys + points | points + polys + cells |
| `vtkUnstructuredGrid` | cells    | points         | points + cells         |
]

---

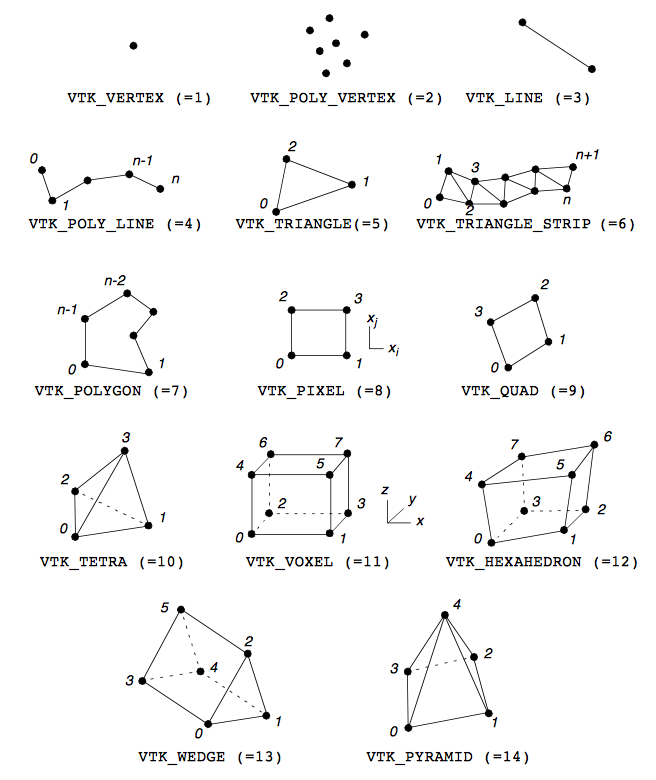

# `VTK` - Cell types

.hcenter.w50[![](images/vtk_cells.png)]

---

# `VTK` - `vtkDataSet` classes

.hcenter.w100.mermaid.shadow[
    graph RL
    B(vtkHyperTreeGrid) --> A(vtkDataSet)
    A --> Z(vtkDataObject)
    C(vtkImageData) --> A
    D(vtkRectilinearGrid) --> A
    E(vtkPointSet) --> A
    F(vtkStructuredPoints) --> C
    G(vtkUniformGrid) --> C
    H(vtkLabelHierarchy) --> E
    I(vtkPath) --> E
    J(vtkPolyData) --> E
    K(vtkStructuredGrid) --> E
    L(vtkUnstructuredGridBase) --> E
    M(vtkMappedUnstructuredGrid) --> L
    N(vtkUnstructuredGrid) --> L
    style A fill:#2A2
]

---

# `VTK` - File formats

:arrow_right: [Reference document](https://www.vtk.org/wp-content/uploads/2015/04/file-formats.pdf) on `VTK` file formats.

.vspace[]

.hcenter[
| Name              | Extension | Type     | Resulting class       | Structured ? |
| :---------------- | :-------: | :------: | :-------------------- | :----------: |
| ImageData         | `.vti`    | Serial   | `vtkImageData`        | yes          |
| PolyData          | `.vtp`    | Serial   | `vtkPolyData`         | no           |
| RectilinearGrid   | `.vtr`    | Serial   | `vtkRectilinearGrid`  | yes          |
| StructuredGrid    | `.vts`    | Serial   | `vtkStructuredGrid`   | yes          |
| UnstructuredGrid  | `.vtu`    | Serial   | `vtkUnstructuredGrid` | no           |
| PImageData        | `.pvti`   | Parallel | `vtkImageData`        | yes          |
| PPolyData         | `.pvtp`   | Parallel | `vtkPolyData`         | no           |
| PRectilinearGrid  | `.pvtr`   | Parallel | `vtkRectilinearGrid`  | yes          |
| PUnstructuredGrid | `.pvtu`   | Parallel | `vtkUnstructuredGrid` | no           |
| PStructuredGrid   | `.pvts`   | Parallel | `vtkStructuredGrid`   | yes          |
]

## Versions

:arrow_right: For each format, two versions are available: **Legacy** and **`XML`**
:arrow_right: **Legacy** versions **are easy** to write but slightly verbose
:arrow_right: **`XML`** versions are **difficult to write** but less (**or more**) verbose
:bulb: XML versions can be **parallelized**

---

# `VTK` - `vtkDataSet` classes with a corresponding `Reader`

.hcenter.w100.mermaid.shadow[
    graph RL
    B(vtkHyperTreeGrid) --> A(vtkDataSet)
    A --> Z(vtkDataObject)
    C(vtkImageData) --> A
    D(vtkRectilinearGrid) --> A
    E(vtkPointSet) --> A
    F(vtkStructuredPoints) --> C
    G(vtkUniformGrid) --> C
    H(vtkLabelHierarchy) --> E
    I(vtkPath) --> E
    J(vtkPolyData) --> E
    K(vtkStructuredGrid) --> E
    L(vtkUnstructuredGridBase) --> E
    M(vtkMappedUnstructuredGrid) --> L
    N(vtkUnstructuredGrid) --> L
    style A fill:#2A2
    style C fill:#A22
    style D fill:#A22
    style J fill:#A22
    style K fill:#A22
    style N fill:#A22
]

---

# `VTK` - `PyEVTK` module

.noflex[
.rightf.shadow.w30[![](images/salvation.png)]

## `PyEVTK` module

:arrow_right: Allows to **easily** write `VTK` files for the main `vtkDataSet` classes:
* points
* structured grid
* rectilinear grid
* image

:arrow_right: **directly from numpy arrays**
:arrow_right: **no `VTK` dependency**
:arrow_right: good performances
]

.block[
* Repository: [https://github.com/paulo-herrera/PyEVTK](https://github.com/paulo-herrera/PyEVTK)
* License: `MIT` ?
]

---

# `VTK` - `PyEVTK` supported `vtkDataSet` classes

.hcenter.w100.mermaid.shadow[
    graph RL
    B(vtkHyperTreeGrid) --> A(vtkDataSet)
    A --> Z(vtkDataObject)
    C(vtkImageData) --> A
    D(vtkRectilinearGrid) --> A
    E(vtkPointSet) --> A
    F(vtkStructuredPoints) --> C
    G(vtkUniformGrid) --> C
    H(vtkLabelHierarchy) --> E
    I(vtkPath) --> E
    J(vtkPolyData) --> E
    K(vtkStructuredGrid) --> E
    L(vtkUnstructuredGridBase) --> E
    M(vtkMappedUnstructuredGrid) --> L
    N(vtkUnstructuredGrid) --> L
    style A fill:#2A2
    style C fill:#A22
    style D fill:#A22
    style J fill:#A22
    style K fill:#A22
    style N fill:#A22
]

---

class: top

.vspace[]

# `VTK` - Mandelbrot set

## Definition

--

Let us define the function `\(f_c(z)\)` as

`$$\forall (z, c) \in \mathbb{C}^2,\, f_c(z) \equiv z^2 + c.$$`

We then define the series `\(z^{(c)}_n\)` as

`$$\forall (n, c) \in \mathbb{N}^* \times \mathbb{C},\, z^{(c)}_n \equiv f_c(z_{n-1}) \textrm{ and } z^{(c)}_0 \equiv 0.$$`

The set of `\(c\)` complex numbers for which the `\(z^{(c)}_n\)` series **does not diverge** is called the **Mandelbrot set**.

.hcenter.shadow.w40[![](images/mandelbrot_set.png)]

---

# `VTK` - `PyEVTK` module

## .hcenter[\[vtk/pyevtk_image.py\]]
```Python
#!/usr/bin/env python3

import numpy as np
from pyevtk.hl import imageToVTK

def mandelbrot_set(X, Y, maxiter, horizon = 2.0):
  C = X + Y[:, None] * 1j
  N = np.zeros(C.shape, dtype = int)
  Z = np.zeros(C.shape, np.complex64)
  for n in range(maxiter):
    if n % (maxiter / 10) == 0:
      print('progress: %d/%d' % (n, maxiter))
    I = np.less(abs(Z), horizon)
    N[I] = n
    Z[I] = Z[I] ** 2 + C[I]
  return Z.transpose(), N.transpose()

nx = 800
ny = 600
x = np.linspace(-2.25, 0.75, nx, dtype=np.float32)
y = np.linspace(-1.25, 1.25, ny, dtype=np.float32)

Z, N = mandelbrot_set(x, y, 2000, 2.0)

filename = 'mandel_image'

*imageToVTK(filename, pointData = {'N': N.astype(np.float32).reshape((nx, ny, 1), order = 'C')})

print('%s.vti generated' % (filename))
```

---

# `VTK` - `PyEVTK` module

## .hcenter[Shell session]

```shell
$ ./pyevtk_image.py
progress: 0/2000
progress: 200/2000
progress: 400/2000
progress: 600/2000
progress: 800/2000
progress: 1000/2000
progress: 1200/2000
progress: 1400/2000
progress: 1600/2000
progress: 1800/2000
mandel_image.vti generated
```

:arrow_right: The generated file `mandel_image.vti` is of type `XML` with binary data:

##.hcenter[\[mandel_image.vti\]]

```xml
<?xml version="1.0"?>
<VTKFile byte_order="LittleEndian" version="1.0" type="ImageData" header_type="UInt64">
<ImageData Origin="0.0 0.0 0.0 " WholeExtent="0 799 0 599 0 0" Spacing="1.0 1.0 1.0 ">
<Piece Extent="0 799 0 599 0 0">
<PointData scalars="N">
<DataArray NumberOfComponents="1" offset="0" type="Float32" Name="N" format="appended"/>
</PointData>
</Piece>
</ImageData>
<AppendedData encoding="raw">
[...]
</AppendedData>
</VTKFile>
```

---

# `VTK` - `PyEVTK` module

:arrow_right: The file `mandel_image.vti` can now be opened by the corresponding `Reader`.

## .hcenter[\[vtk/vtk_load_image.py\]]

.row[
.column.w48[
```Python
#!/usr/bin/env python3

# generate 'mandel_image.vti' first !
import vtk

# source
reader = vtk.vtkXMLImageDataReader()
reader.SetFileName('mandel_image.vti')
reader.Update()

# Set active scalars
pointData = reader.GetOutput().GetPointData()
pointData.SetActiveScalars('N')

# mapper
mapper = vtk.vtkDataSetMapper()
mapper.SetInputConnection(reader.GetOutputPort())
mapper.SetScalarRange(0.0, 40.0)

# actor
actor = vtk.vtkActor()
actor.SetMapper(mapper)
```
]
.column.w48[
```Python
# renderer
ren = vtk.vtkRenderer()
ren.AddActor(actor)
ren.SetBackground(0, 0, 0)

# window
renWin = vtk.vtkRenderWindow()
renWin.AddRenderer(ren)

# interactor
iren = vtk.vtkRenderWindowInteractor()
iren.SetRenderWindow(renWin)
iren.Initialize()

# set window size and render
renWin.SetSize(300, 300)
renWin.Render()

# start interactor loop
iren.Start()
```
]
]

:arrow_right: A specific interactor style `vtkInteractorStyleImage` is used in this example.

---

# `VTK` - `PyEVTK` module

## .hcenter[\[vtk/pyevtk_grid.py\]]
```Python
#!/usr/bin/env python3

import numpy as np
from pyevtk.hl import gridToVTK

def mandelbrot_set(X, Y, maxiter, horizon = 2.0):
  C = X + Y[:, None] * 1j
  N = np.zeros(C.shape, dtype = int)
  Z = np.zeros(C.shape, np.complex64)
  for n in range(maxiter):
    if n % (maxiter / 10) == 0:
      print('progress: %d/%d' % (n, maxiter))
    I = np.less(abs(Z), horizon)
    N[I] = n
    Z[I] = Z[I] ** 2 + C[I]
  return Z.transpose(), N.transpose()

nx = 800
ny = 600
x = np.linspace(-2.25, 0.75, nx, dtype=np.float32)
y = np.linspace(-1.25, 1.25, ny, dtype=np.float32)
z = np.linspace(0.0, 1.0, 1, dtype=np.float32)

Z, N = mandelbrot_set(x, y, 2000, 2.0)

filename = 'mandel_grid'

gridToVTK(filename, x, y, z, pointData = {'N': N.reshape((nx, ny, 1), order = 'C')})

print('%s.vtr generated' % (filename))
```

---

# `VTK` - `PyEVTK` module

## .hcenter[Shell session]

```shell
$ ./pyevtk_grid.py
progress: 0/2000
progress: 200/2000
progress: 400/2000
progress: 600/2000
progress: 800/2000
progress: 1000/2000
progress: 1200/2000
progress: 1400/2000
progress: 1600/2000
progress: 1800/2000
mandel_grid.vtr generated
```

:arrow_right: The generated file `mandel_grid.vtr` is of type `XML` with binary data:

##.hcenter[\[mandel_grid.vtr\]]

```xml
<?xml version="1.0"?>
<VTKFile byte_order="LittleEndian" version="1.0" type="RectilinearGrid" header_type="UInt64">
<RectilinearGrid WholeExtent="0 799 0 599 0 0">
<Piece Extent="0 799 0 599 0 0">
<Coordinates>
<DataArray NumberOfComponents="1" offset="0" type="Float32" Name="x_coordinates" format="appended"/>
<DataArray NumberOfComponents="1" offset="3208" type="Float32" Name="y_coordinates" format="appended"/>
<DataArray NumberOfComponents="1" offset="5616" type="Float32" Name="z_coordinates" format="appended"/>
</Coordinates>
<PointData scalars="N">
<DataArray NumberOfComponents="1" offset="5628" type="Int64" Name="N" format="appended"/>
</PointData>
</Piece>
</RectilinearGrid>
<AppendedData encoding="raw">
[...]
</AppendedData>
</VTKFile>
```

---

# `VTK` - `PyEVTK` module

:arrow_right: The file `mandel_grid.vtr` can now be opened by the corresponding `Reader`.

## .hcenter[\[vtk/vtk_load_grid.py\]]

.row[
.column.w48[
```Python
#!/usr/bin/env python3

# generate 'mandel_grid.vtr' first !
import vtk

# source
r = vtk.vtkXMLRectilinearGridReader()
r.SetFileName('mandel_grid.vtr')

# mapper
mandelMapper = vtk.vtkDataSetMapper()
mandelMapper.SetInputConnection(r.GetOutputPort())
mandelMapper.SetScalarModeToUsePointFieldData()
mandelMapper.SelectColorArray('N')
mandelMapper.SetScalarRange(0.0, 40.0)

# actor
mandelActor = vtk.vtkActor()
mandelActor.SetMapper(mandelMapper)
```
]
.column.w48[
```Python
# renderer
ren = vtk.vtkRenderer()
ren.AddActor(mandelActor)

# window
renWin = vtk.vtkRenderWindow()
renWin.AddRenderer(ren)

# interactor
iren = vtk.vtkRenderWindowInteractor()
iren.SetRenderWindow(renWin)
iren.Initialize()

# set window size and render
renWin.SetSize(300, 300)
renWin.Render()

# start interactor loop
iren.Start()
```
]
]

:arrow_right: Note the differences between `vtk_load_image.py` and `vtk_load_grid.py`.

---

# `VTK` - `vtkXMLPolyDataWriter`

:arrow_right: In this example, we use a `Writer` instead of the `PyEVTK` module.

## .hcenter[\[vtk/vtk_save_polydata.py\]]

.row[
.column.w48[
```Python
#!/usr/bin/env python3

import numpy as np
import vtk

def mandelbrot_set(X, Y, maxiter, horizon=2.0):
  C = X + Y[:, None]*1j
  N = np.zeros(C.shape, dtype=int)
  Z = np.zeros(C.shape, np.complex64)
  for n in range(maxiter):
    if n % (maxiter / 10) == 0:
      print('progress: %d/%d' % (n, maxiter))
    I = np.less(abs(Z), horizon)
    N[I] = n
    Z[I] = Z[I]**2 + C[I]
  return Z.transpose(), N.transpose()

nx = 800
ny = 600
x = np.linspace(-2.25, 0.75, nx, dtype=np.float32)
y = np.linspace(-1.25, 1.25, ny, dtype=np.float32)

Z, N = mandelbrot_set(x, y, 2000, 2.0 ** 40)

filename = 'mandel_polydata'

points = vtk.vtkPoints()
vertices = vtk.vtkCellArray()

d0 = vtk.vtkFloatArray()
d0.SetName('N')
```
]
.column.w48[
```Python
d0.SetNumberOfTuples(nx * ny)
d0.SetNumberOfComponents(1)

n = 0
for ix, vx in enumerate(x):
  if ix % (nx / 10) == 0:
    print('saving: %d/%d' % (ix, nx))

  for iy, vy in enumerate(y):
    id = points.InsertNextPoint(vx, vy, 0)
    d0.SetComponent(n, 0, N[(ix, iy)])
    vertices.InsertNextCell(1)
    vertices.InsertCellPoint(id)
    n += 1

polydata = vtk.vtkPolyData()
polydata.SetPoints(points)
polydata.GetPointData().AddArray(d0)
polydata.GetPointData().SetScalars(d0)
polydata.SetVerts(vertices)

delaunay = vtk.vtkDelaunay2D()
delaunay.SetInputData(polydata)
delaunay.Update()

writer = vtk.vtkXMLPolyDataWriter()
writer.SetFileName('%s.vtp' % (filename))
writer.SetInputData(delaunay.GetOutput())
writer.Write()

print('%s.vtp generated' % (filename))
```
]
]

---

# `VTK` - `vtkXMLPolyDataWriter`

:arrow_right: A **Delaunay triangulation** is used to generate the mesh topology.

## .hcenter[Shell session]
```shell
$ ./vtk_save_polydata.py
progress: 0/2000
progress: 200/2000
progress: 400/2000
progress: 600/2000
progress: 800/2000
progress: 1000/2000
progress: 1200/2000
progress: 1400/2000
progress: 1600/2000
progress: 1800/2000
saving: 0/800
saving: 80/800
saving: 160/800
saving: 240/800
saving: 320/800
saving: 400/800
saving: 480/800
saving: 560/800
saving: 640/800
saving: 720/800
mandel_polydata.vtp generated
```

---

# `VTK` - `vtkXMLPolyDataWriter`

:arrow_right: The file `mandel_polydata.vtp` can now be opened by the corresponding `Reader`.

## .hcenter[\[vtk/vtk_load_polydata.py\]]

.row[
.column.w48[
```Python
#!/usr/bin/env python3

# generate 'mandel_polydata.vtp' first !
import vtk

# source
*r = vtk.vtkXMLPolyDataReader()
*r.SetFileName('mandel_polydata.vtp')

# mapper
mandelMapper = vtk.vtkDataSetMapper()
mandelMapper.SetInputConnection(r.GetOutputPort())
mandelMapper.SetScalarModeToUsePointFieldData()
mandelMapper.SelectColorArray('N')
mandelMapper.SetScalarRange(0.0, 40.0)

# actor
mandelActor = vtk.vtkActor()
mandelActor.SetMapper(mandelMapper)
```
]
.column.w48[
```Python
# renderer
ren = vtk.vtkRenderer()
ren.AddActor(mandelActor)

# window
renWin = vtk.vtkRenderWindow()
renWin.AddRenderer(ren)

# interactor
iren = vtk.vtkRenderWindowInteractor()
iren.SetRenderWindow(renWin)
iren.Initialize()

# set window size and render
renWin.SetSize(300, 300)
renWin.Render()

# start interactor loop
iren.Start()```
]
]

:arrow_right: Except from the `Reader`, the code is **the same** as in `vtk_load_polydata.py`.

---

# `VTK` - `PyEVTK` module vs. `VTK` `Writer`

## Using a `VTK` `Writer`
:+: allows to use `Filters` for data processing (delaunay...)
:+: allows to use custom data format
:warning: is complex and error-prone
:warning: introduces a dependency to `VTK`

## Using the `PyEVTK` module
:+: is easy and robust
:+: does not introduce a dependency to `VTK`
:warning: does not allow to use `Filters` for data processing
:warning: does not allow to use custom data format

## Conclusion
:arrow_right: If there is no need to perform some processing in the calculation code, prefer the use of the `PyEVTK` module to export data using standard `VTK` dataset types.


---

# `VTK` - `Qt` integration

## .hcenter[\[vtk/vtk_qt.py\]]
```Python
#!/usr/bin/env python3
import sys
import vtk
from PyQt5 import QtCore, QtGui
from PyQt5 import Qt

from vtk.qt.QVTKRenderWindowInteractor import QVTKRenderWindowInteractor

class MainWindow(Qt.QMainWindow):
  def __init__(self, parent = None):
    Qt.QMainWindow.__init__(self, parent)

    self.frame = Qt.QFrame()
    self.vl = Qt.QVBoxLayout()
    self.vtkWidget = QVTKRenderWindowInteractor(self.frame)
*   self.vl.addWidget(self.vtkWidget)

    self.ren = vtk.vtkRenderer()
    self.vtkWidget.GetRenderWindow().AddRenderer(self.ren)
    self.iren = self.vtkWidget.GetRenderWindow().GetInteractor()

    [...]

*   self.frame.setLayout(self.vl)
*   self.setCentralWidget(self.frame)
*   self.show()
*   self.iren.Initialize()
*   self.iren.Start()

app = Qt.QApplication(sys.argv)
window = MainWindow()
sys.exit(app.exec_())
```

---

# `VTK` - Conclusions

## To sum up...
:+: Writing a `VTK` `Writer` in `Python` with the `PyEVTK` module is **easy**
:+: Writing a `VTK` `Writer` in `Python` is **rather easy**
:+: Writing a `VTK` visualization pipeline in `Python` is **rather easy**
:warning: Using `VTK` in `C++` **may be complex**
:warning: Integrating `VTK` in an application in `Qt` **may be complex**
:warning: Knowing how to manage `VTK` objects, methods and datatypes is **difficult**:
* `VTK` documentation may be hard to find and understand
* several versions of `VTK` exist and are not compatible
* working `VTK` examples may be hard to find

.vspace[]

.block[
## My opinion as a scientist

For a scientist, playing with the visualization pipeline to post-process results is a **never-ending game**.
Re-writing a program (even in a nice language like `Python`) to change the pipeline is **not convenient**.
:arrow_right: This is why using a `VTK` front-end is preferable when exploring the pipeline possibilities.

When a pipeline has been found for a given post-processing or visualization, then the corresponding `C++` or `Python` code can be written.
]

---

# `VTK` - Front-ends

.row[
.column.middle.w70[

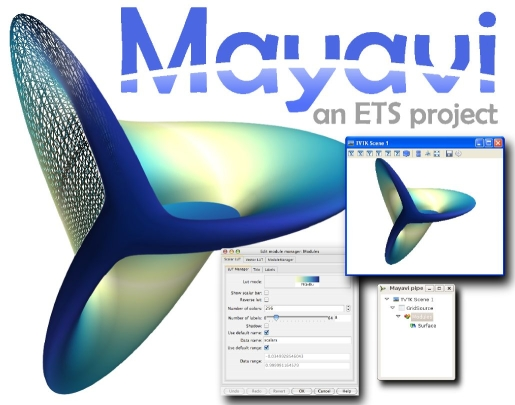

## `Mayavi`
.block[
* Repository: [https://github.com/enthought/mayavi](https://github.com/enthought/mayavi)
* Website: [https://docs.enthought.com/mayavi/mayavi/](https://docs.enthought.com/mayavi/mayavi/)
* License: `BSD`
]
]
.column.w25.middle.shadow[![](images/mayavi.png)]
]

.vspace[]

.row[
.column.middle.w70[
## `Paraview`
.block[
* Repository: [https://gitlab.kitware.com/paraview/paraview](https://gitlab.kitware.com/paraview/paraview)
* Website: [https://www.paraview.org](https://www.paraview.org)
* License: `BSD`
]
]
.column.w25.middle.shadow[![](images/paraview.png)]
]
